UiBinder

The UiBinder framework allows you to build your apps as HTML pages with GWT widgets sprinkled throughout them. The Google Plugin for Eclipse helps you use UiBinder by providing a UiBinder template editor with auto-completion, validation, and inlined CSS support.

Note: For a general overview of the UiBinder framework, see Declarative Layout with UiBinder .

Creating a UiBinder

Select File > New > UiBinder to open the New UiBinder wizard. This wizard lets you specify the name and location of your UiBinder, as well as choose whether it will be composed of Widgets or HTML-based . You can also optionally add sample content and/or comments to the generated files.

New UiBinder wizard

Adding GWT widgets

The UiBinder template editor provides auto-completion for widget names and panel-specific child elements.

Auto-complete the class name of a widget

The first time a completion proposal for a widget from an unimported package is chosen, the unimported package will be imported by adding a new namespace to the root <ui:UiBinder> element.

Tip: You can change the generated prefix for the new namespace after choosing the completion proposal.

Change the namespace prefix for a newly imported package

Some layout panels only allow panel-specific child elements, for example DockLayoutPanel . In this case, use auto-completion to pick a valid child element.

Auto-completion to pick valid child element

Adding inlined styles

With the <ui:style> element, you can define the CSS for your UI right where you need it. The editor provides auto-completion for the inlined CSS.

Auto-completion in inlined CSS

Once your CSS is defined, you can use auto-completion from the field reference to choose a CSS class.

Auto-complete in the field reference to the inlined style

Accessing external resources

With the <ui:with> element, you can refer to Java types instantiable with GWT.create() . The editor provides auto-completion for picking types.

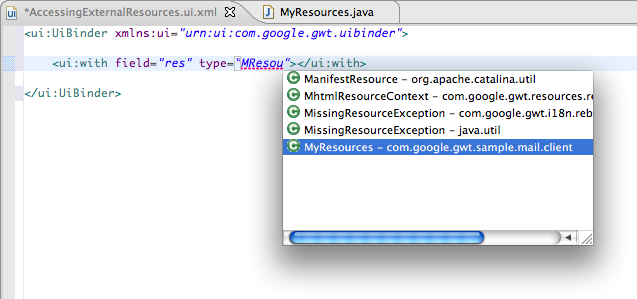

Auto-completion for the type attribute on a with element

Once the type is defined, you can use auto-completion from the field reference to choose a method.

Auto-completion in the field reference to the Java type

As-you-type validation

The plugin provides as-you-type validation for many areas of UiBinder templates and owner classes. For example, if a field reference points to an undefined selector, it will be marked as an error.

Note: You can change the default severity of any type of problem with Preferences > Google > Errors/Warnings .

Validation for field reference

Owner classes also get validation. For example, if a field marked with @UiField does not exist in its corresponding UiBinder template, it will be marked as an error.

Validation for UiField in owner class
